It is used with Cardiac Electrophysiology Recording System and 3D Cardiac Mapping System for cardiac mapping, stimulating and recording.
Features
Excellent control comes from the ergonomic handle design:
- National Invention Patent Certification;

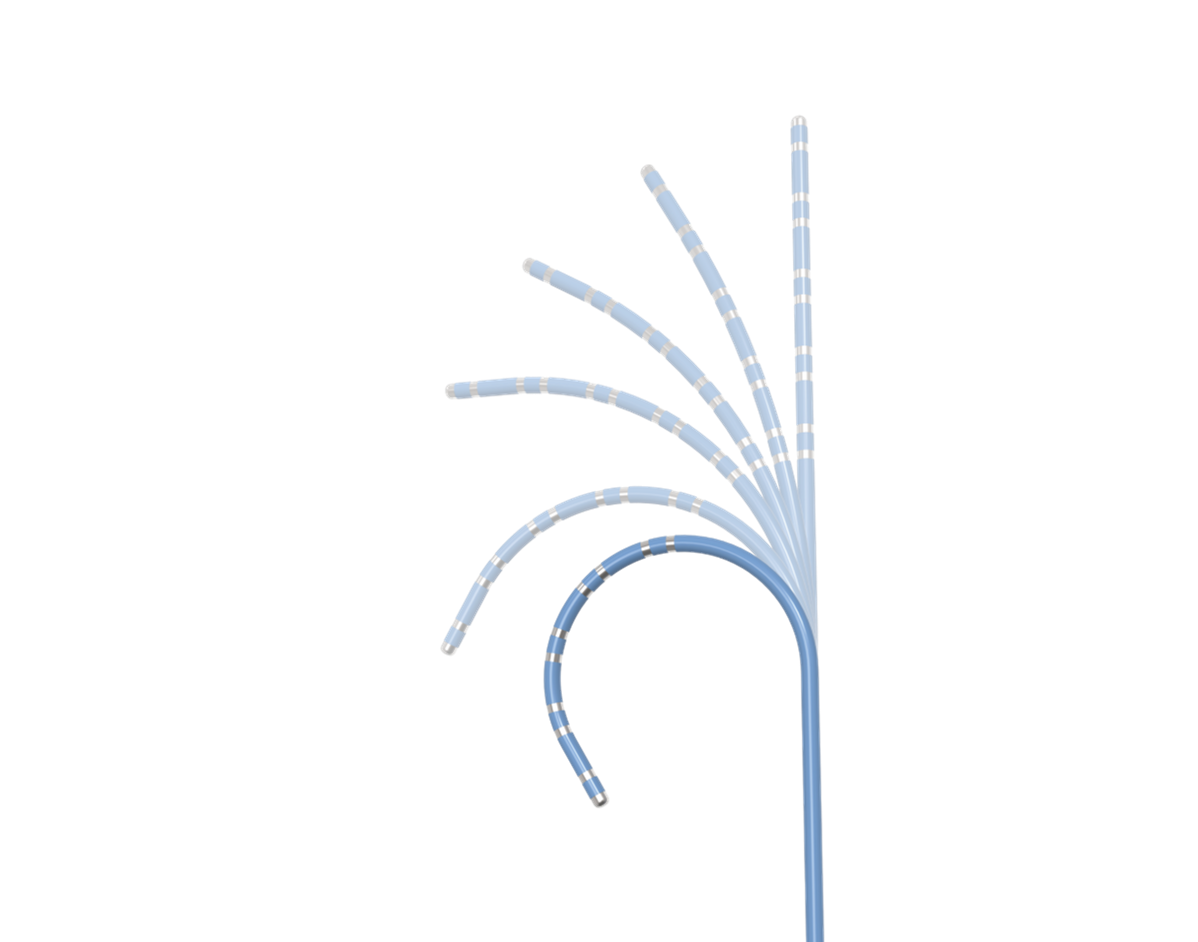

- Unique identification for electrode bending direction;
- Built-in labor saving gear in handle can reduce fatigue;
- The concave and convex grain in push and pull handle prevents skidding.
Clear electrophysiological signals
Good fixation by special electrode mosaic technique which can collect the excellent intracardiac electrophysiological signals after adherent tissue provides more diagnosis basis;
Stable and seamless
The catheter body adapts integrated steel wire braiding design. The hardness of catheter body ensures safety and has 1 to 1 torque.
|
Ordering Information |
|||||
| Curve | Color | O.D（F） | Electrode Spacing（mm） | Number of Electrode | Effective Length（mm） |
| S | Yellow | 6 | 10-10-10，2-5-2-5-2-5-2-5-2，2-8-2-8-2-8-2-8-2 | 4，10 | 1100 |
| M | Red | 6 |
10-10-10，2-5-2-5-2-5-2-5-2，2-8-2-8-2-8-2-8-2 |
4，10 |
1100 |
| L | Green | 6 |
10-10-10，2-5-2-5-2-5-2-5-2，2-8-2-8-2-8-2-8-2 |
4，10 | 1100 |
