It is used to treat tachyarrhythmia through cardiac RF abation procedure with RF Abaltion Generator.
Features
Excellent control comes from the ergonomic handle design:
- National Invention Patent Certification;
- Unique identification for electrode bending direction;
- Built-in labor saving gear in handle can reduce fatigue;
- The concave and convex grain in push and pull handle prevents skidding.
Excellent electrical signal and anti-interference ability

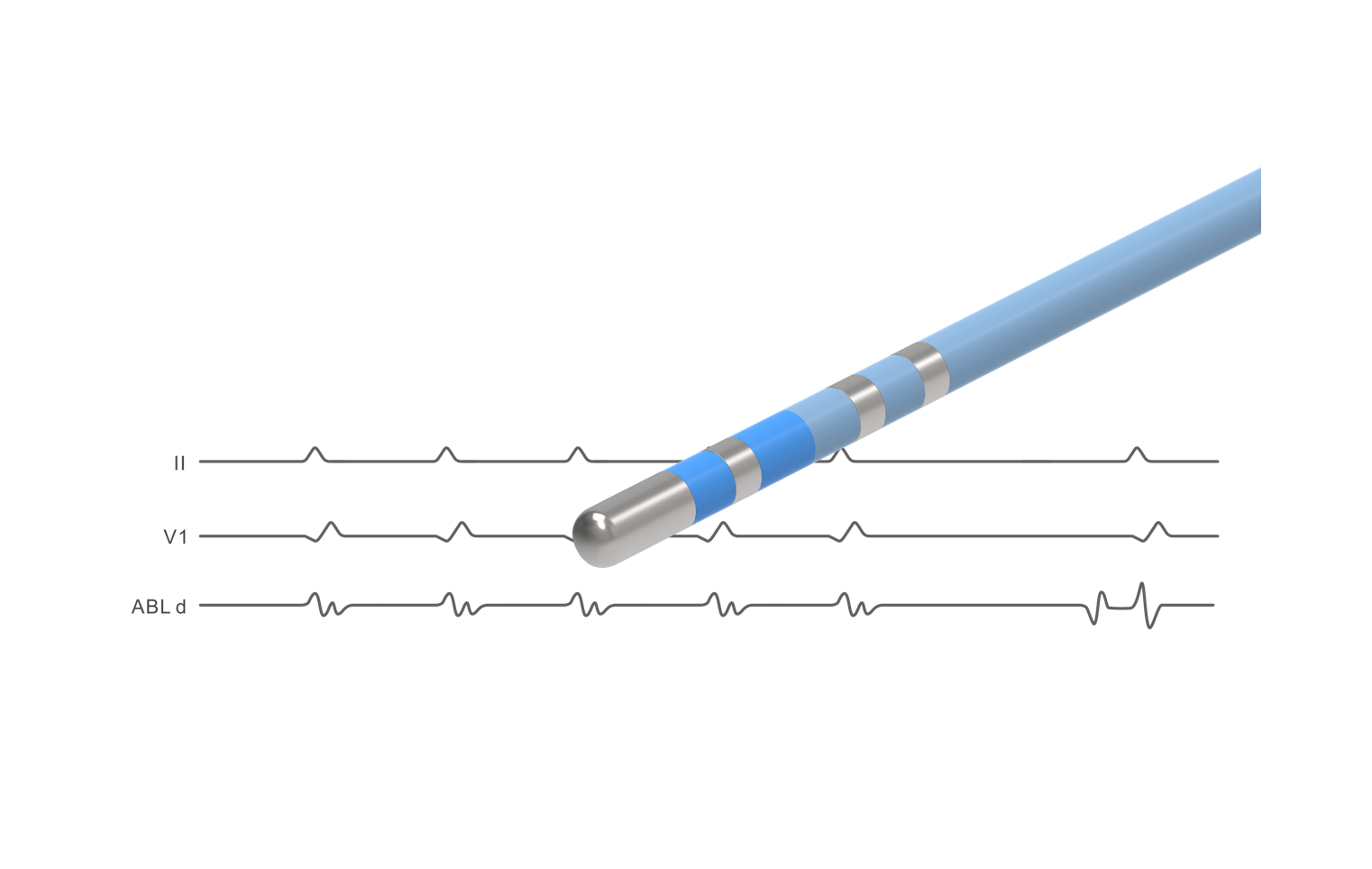

Good fixation by special electrode mosaic technique can collect the excellent intracardiac electrophysiological signals after touching tissues; With Jinjiang Electronic 30 years ECG signal processing technology, the electrophysiology signals are clear during ablation.
|
Ordering Information |
|||||
| Curve | Color | O.D（F） | Electrode Spacing（mm） | Number of Electrode | Effective Length（mm） |
| A | Yellow | 7, 8 |
2-5-2, 2-2-2 |
4 | 1100, 900 |
| B | Red | 7, 8 |
2-5-2, 2-2-2 |
4 |
1100, 900 |
| D | Blue | 7, 8 |
2-5-2, 2-2-2 |
4 | 1100, 900 |
